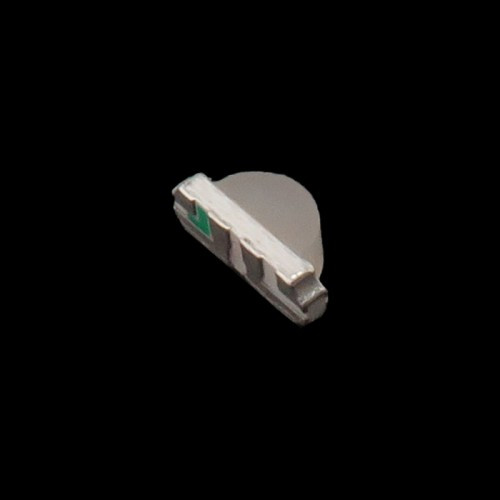

LED RGB مدل 1204 نوع SMD

Description:

The abbreviation SMD refers to a 'Surface Mounted Device'. That means this is an LED Chip (device) mounted directly to a light strip, without using wires. This surface mounting technology is indeed what makes LED Light Strips possible. The numbers after the SMD simply refer to the physical size of the LED Chip.

This 1204 package provides the option to mount it as a top emitting or side-emitting (right angle) device. The device can be used on smaller boards with a higher packing density and is ideal for handheld applications.



Application:

Automotive backlighting for dashboard and switches

Telecommunications (backlighting for telephones and faxes)

Flat backlight for LCD, switch and symbol



Features:

Color: Red, Green, Blue (RGB)

Configuration: Common Anode

Current - Test: 20mA Red, 20mA Green, 20mA Blue

Height (Max): 1.00mm ~ 1.50mm

Lens Color: White

Lens Size: 2.00mm x 1.00mm

Lens Style: Rectangle with Domed Top

Lens Transparency: Diffused

Millicandela Rating: 105mcd Red, 330mcd Green, 200mcd Blue

Package / Case: 4-SMD, No Lead

Supplier Device Package: 1204

Viewing Angle: 150°

Voltage - Forward (Vf) (Typ): 2V Red, 3.3V Green, 3.3V Blue

Wavelength - Dominant: 625nm Red, 530nm Green, 475nm Blue
