مقاومت حرارتی 100k NTC 24V

Description:

NTC thermistors are used everywhere in our lives, and because of their resistance characteristics that the resistance value decreases as the temperature rises, they are used in temperature sensors such as thermometers and air conditioners, and in temperature control devices such as smartphones, kettles, and irons.
3D Printer High-Temperature HT-NTC100K Thermistor Sensor With XH2.54 is based on a 100Kohm thermistor, to detect and measure wide range temperature. A thermistor is a thermal resistor, whose resistance quantity varies extremely with the temperature variation, more than a typical resistor. This thermistor is made of thin-film Platinum, an anti-corrosion waterproof material to achieve highly accurate and long-time stability.



Application:

Industrial devices

medical tools

official instruments

3D Printers



Specifications:

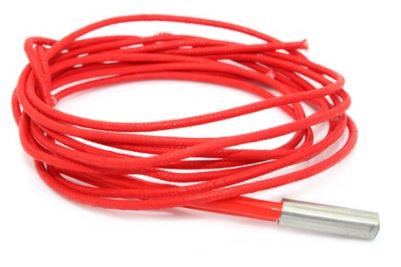

Name: 3D Printers Cartridge Heater

Diameter: 6mm

Length: 20mm.(Size: 6*20mm)

Length of Wire: 150mm

Voltage: 24V

Power: 40W

Recommended heating temperature: 0 ~ 300 degrees Celsius

terminal: XH2.54

Thermistor: 100k 3950
