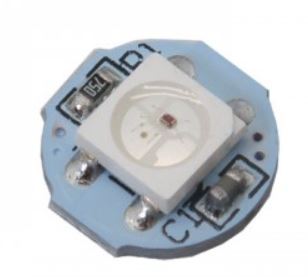

ماژول LED RGB WS2812B

Description:

The WS2812B RGB LED module is one of the most popular LED modules for smart lighting projects. These modules allow for independent control of each LED, enabling the creation of colorful and attractive lighting effects. The "Neopixel RGB with heatsink" model is an ideal choice for situations where temperature management is needed, as the heatsink in this model helps optimize the module's cooling.

Additionally, the WS2812B LED strip board allows users to incorporate WS2812 modules into their LED strip designs, which can easily be installed in various projects, including both indoor and outdoor decorations, lighting displays, and even advertising boards. These modules are an excellent option for any creative project due to their ability to adjust color and light intensity.

Applications:
Urban Billboards
Digital Advertising Boards
LED Display Screens

Features:
product model: WS2812-light string board
light source: SMD 5050 RGB;
sheet: aluminum substrate;
chip: Taiwan wafer chip, and other Taiwan chips;
IC model: WS2811
gray level : 256 level
luminous angle: 180 °;
luminous color: can be adjusted by the controller, white, red, yellow, blue, green, etc.
standard working voltage: DC 5V;
power: 0.3W ± 0.01%;
waterproof grade: not waterproof,
FPCB board size: width: 10 mm, thickness: 3mm;
