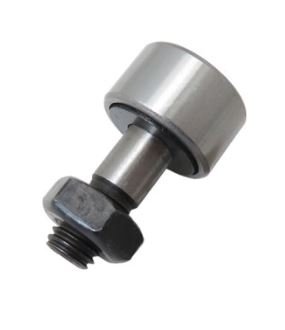

رولبرینگ پیچ دار مدل CF8 / KR19

Description:

A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles.

The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.

The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.

Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

Cam followers are used as a guide roller for cam mechanisms or linear motion.



Application :

Machine tools

Industrial robots

Electronic parts machinery



Features:

Model: CF8 (KR19)

Bearing Material: GCr15 Steel

Cage Material: Mild Steel

Roller Diameter: 19mm

Roller Width: 11mm

Stud Diameter: 8mm

Stud Length: 20mm

Thread Size: M8x1.25mm

Thread Length: 10mm

Overall Length (Max.): 32.2mm

Dynamic Load Rating (Cr): 0.3kN

Static Load Rating (Cor): 0.21kN

Limited Speed: 20000 rpm
