اکسترودر دو نازله MK8 پرینتر سه بعدی

Description:

3D Printer Geeetech MK8 Extruder is a Geeetech upgraded of the MK8 extruder module for the 3D printer with 42BYGHW818 stepper motor and 0.3mm nozzle installed, which can simply be assembled as dual head extrusion by adding a holder.

The extruder is the base of the printing process. The solid plastic of the printing material known as filament gets into the extruder, melted due to high temperature, and get out according to program command. This acts as a programmed fancy hot glue gun. The extruder has two main parts of the hot end and cold end, together (Direct extruder) or separated (Bowden extruder).

The cold end base is a step motor to pull inward the filament in the extruder and push it outward. The hot end should be hot enough to melt the filament and spout on the bed. Basic parts of the extruder are Hobbed gear, Ideler gear, Hot-end heatsink known as heat brack, Heater cartridge, Thermistor or RTD, nozzle.

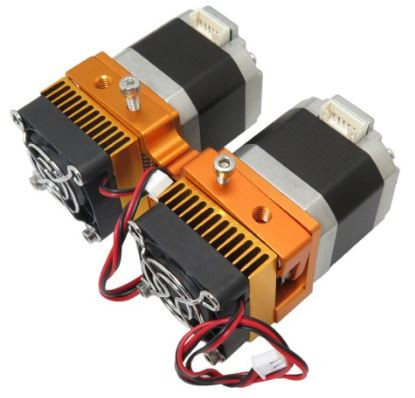

The two print heads are conjoined with a piece of high hardness aluminum bar with good heat dispersion and high reliability. The main benefits of this Dual Extruder include being able to print more complex objects with support structures and more aesthetically pleasing objects that feature multiple colors or multiple materials. The possibilities are only limited by your imagination.

MK8 extruder offers great quality with high performance for 3D printers. This extruder utilizes a double "V" feeding to achieve stable and uniform feeding. The MK8 uses the heat-resistance Teflon tube inside the barrel that has a self lubricant property to smooth movement of the filament and ensures fluent feeding.

Also, MK8 has a precise nozzle for precise extrusion and excellent printing. By applying a proper extruder holder, MK8 can be used on most 3D printers such as Reprap Prusa I3 and many other types of 3D printers.

The Geeetech MK8 upgraded extruder uses 42BYGHW818 stepper motor that is a 42mm high-quality stepper motor with larger torque and less heat buildup. This MK8 has special ceramic insulation cotton for heat stability and low power consumption.



Application:
3d printer



Feature:
Nozzle Size: 0.35 mm

Consumables: PLA / ABS 1.75 mm

Nozzle flow rate: about 24cc / h

Shaft Speed: 40mm / s

Power Supply voltage: 12V

Thermistors: NTC 100K

Heater Specifications: 6mm, 12V, 30W

Normal working temperature: 190 ° -230 °

Fan Specifications: 40X 40 X 15 mm, 12V

Cooling Block Specifications: 40X 40 X 11mm (gold, anodized surface)
