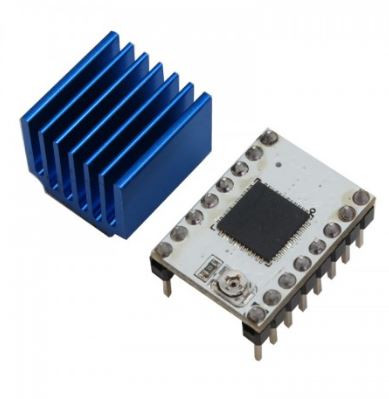

ماژول درایور استپر موتور TB67S109

Description:
TB67S109 Stepper Motor Driver Module is designed based on the TB67S109 chip that is a two-phase bipolar stepping motor driver using a PWM chopper. The clock in decoder is built in. Fabricated with the BiCD process, rating is 50 V/4.0 A .



Application:

Stepper motor controller

CNC

3D printer



Features:

Maximum output voltage: 50V

Maximum output current: 4A

Maximum supply voltage: 6V

Operation steps: full, half, quarter, 1/8, 1/16, 1/32 step

Pin Number: 16

Operation temperature: -20°C ~ 85°C
