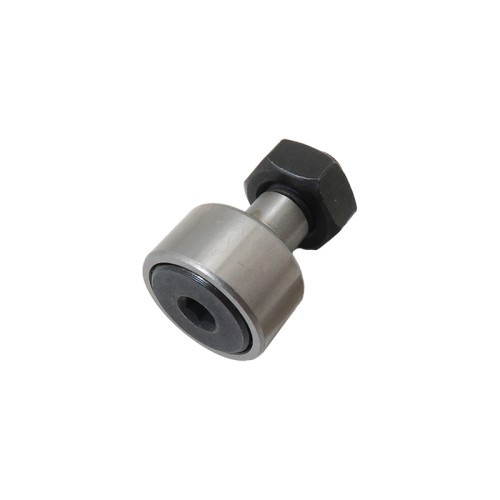

رولبرینگ پیچ دار مدل CF10 / KR22

Description:

Cam Follower Needle Roller Bearing package contains 4 pieces of a precision roller bearing with nut, which is used to guide slider conveyer belt rail in a linear path. A cam follower is known as a track follower that is designed to track cam lob profiles. The roller follower is a consolidated and stiff bearing set. The cam follower is categorized base on bearing types (as roller bearing and needle bearing) or according to surface contact between the cam follower and cam (as knife-edge follower, roller follower, flat follower, spherical follower, oscillatory motion type follower, and offset follower). These cam followers are CF/KR bearing series, which is based on a needle bearing and is used as a linear lead for cam disks and linear movement.

This bearing is presented in 4 optional models of the CF4 / KR12, CF5 / KR13, CF8 / KR19, and CF10 / KR22, that a digit after CF means the screw size such as M4, M5, M8, and M10, and two digits after the KR indicate the wheel diameter.



Application:

Machine tools

Industrial robots

Electronic parts machinery



Features:

Type: CF10 / KR22

Thread: M10 x 1.25

Wheel diameter: 22mm

Total Length: 36.2
