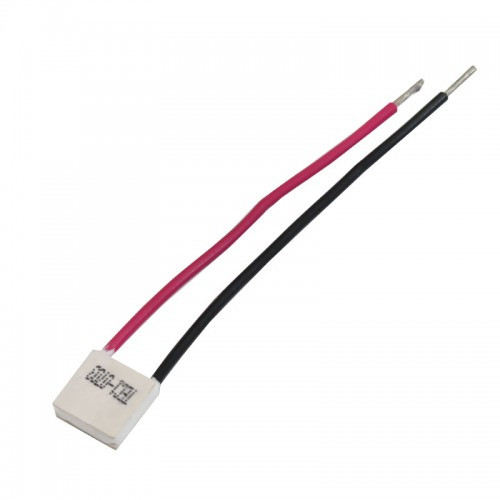

کولر ترموالکتریک TEC1-00703

Description:

Thermoelectric cooling uses the Peltier effect to create a heat flux at the junction of two different types of materials. A Peltier cooler, heater, or thermoelectric heat pump is a solid-state active heat pump which transfers heat from one side of the device to the other, with consumption of electrical energy, depending on the direction of the current. Such an instrument is also called a Peltier device, Peltier heat pump, solid-state refrigerator, or thermoelectric cooler (TEC).

Thermoelectric generators could be used in power plants to convert waste heat into additional electrical power and in automobiles as automotive thermoelectric generators (ATGs) to increase fuel efficiency. Another application is radioisotope thermoelectric generators which are used in space probes, which have the same mechanism but use radioisotopes to generate the required heat difference.

Thermoelectric generators are all-solid-state devices that do not require any fluids for fuel or cooling, making them non-orientation dependent allowing for use in zero-gravity or deep-sea applications.

Most thermoelectric materials today have a zT, the figure of merit, value of around 1, such as in bismuth telluride (Bi2Te3) at room temperature and lead telluride (PbTe) at 500–700 K.

The vast majority of thermoelectric coolers have an ID printed on the cooled side.

Application:
car cooler
industrial devices
chips cooling


Features:
model: TEC1-00703
Max. Current: 3.3A
Max. Temperature Difference: 68 degrees C
Max. Voltage: 0.85V
Max. Refrigeration Power: 1.4 W
dimensions:10x10x4.4mm
Cable Length: 29 cm
