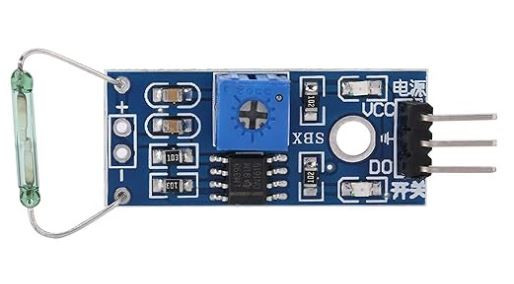

ماژول رید مگنتیک (ماژول مغناطیسی)

Description:

Reed switch is a kind of passive electronic switching component with contacts with a simple structure, small size, and easy to control. It consists of a sealed glass envelope where there are two ferrous elastic reeds and is filled with an inert gas called rhodium. Normally, the two reeds are separated in the envelope. When a magnetic substance approaches the glass envelope, the reeds will come together due to the magnetic field thus completing an electric circuit. When the external magnetic field disappears, two reeds will be separated because of their elasticity, the circuit is also disconnected. Therefore, as a circuit switching device controlled by magnetic field signals, reed switch can also be used as a sensor for counting and limiting, etc. ( applied in the security systems, mainly used for the production of door and window magnets), and it is also widely used in a variety of communications devices. In practice, it is common to use the two permanent magnets to control the connection of two metal sheets, thus it is also called a "magnetron".



Application:

Program-controlled switches

copiers, washing machines

refrigerators

cameras

disinfection cupboards

door magnets

window magnets

electromagnetic relays

electronic weighing instruments

liquid level gauges

gas meters

water meters



Features:

1. Normally open reed switch

2. Comparator output, clean signal, good waveform, strong driving ability, more than 15mA.

3. Working voltage 3.3V-5V

4. Output form: digital switch output (0 and 1)

5. With fixing bolt holes for easy installation

6. Small board PCB size: 3.2cm x 1.4cm

7. Use wide voltage LM393
