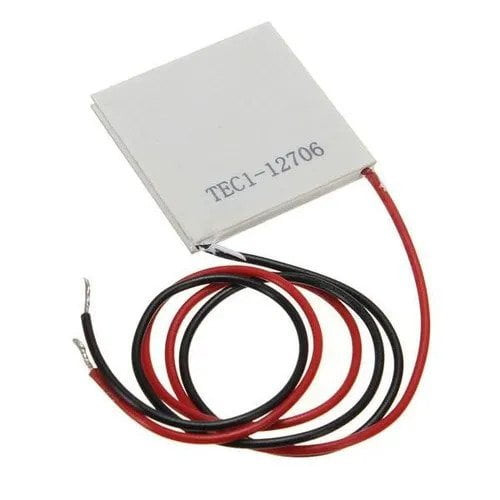

المان خنک کننده (ترمو الکتریک) TEC1-12706

Chip Model: TEC1-12706
Dimensions: 40 * 40 * 3.8mm (Please note the 3.8mm, not through street selling 3.4mm) components logarithmic 127
Wire Size: Length 300 ± 5mm RV lead standard single head 5mm tinned wire
Internal resistance: 2.5 ~ 2.8Ω (ambient temperature of 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature: △ Tmax (Qc = 0) 65 ℃ or more.
Operating current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: DC12V (Vmax: 15V Starting current 5.8A)
Cooling power: Qcmax 60-72W
Assembly Pressure: 85N/cm2
Working environment: Temperature range -55 ℃ ~ 83 ℃ (high ambient temperature drop directly affect the cooling efficiency)
Packaging process: four weeks Standard 704 silicone rubber seal
Packaging Standard: foam box packing, storage conditions Ambient temperature -10 ℃ ~ 40 ℃
Storage conditions: -40 ~ 60 ℃
