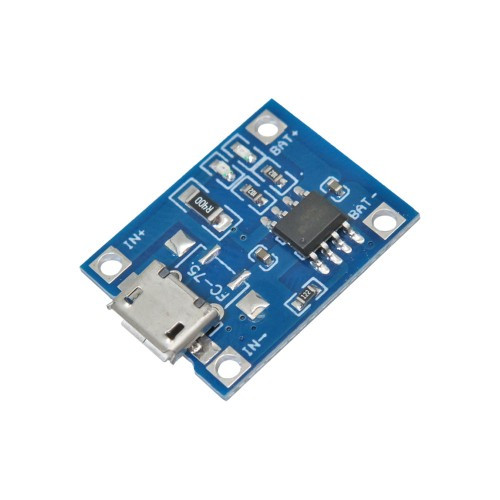

ماژول شارژر باتری های لیتیومی TP4056 با قابلیت تغذیه میکرو USB و جریان دهی 1 آمپر

DESCRIPTION:
The TP4056 is a complete constant-current/constant-voltage linear charger for single-cell
lithium-ion batteries. Its SOP package and low external component count make the TP4056
ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall
adapter.
No blocking diode is required due to the internal PMOSFET architecture. It featured negative Charge Current Circuit prevention.
Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor.
The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
TP4056 Other features include the current monitor, under-voltage lockout, automatic recharge and
two status pin to indicate charge termination and the presence of an input voltage.

Features:
Charging method: Linear charge
Charging current: 1A (adjustable)
Charging precision: 1.5%
Input voltage: 4.5V ~ 5.5V
Full charge pressure: 4.2V
Charging indicator: Blue Light Charging Red full charge
Input Interface: Micro USB
Operating Temperature: -10 ° C ~ 85 ° C
Reversal Polarity : NOT ALLOWED
External dimensions: 25 * 19 * 10mm
