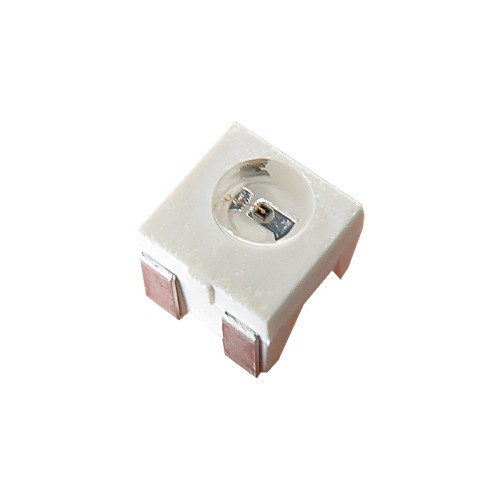

سنسور مادون قرمز توان بالا مدل SFH4255

Description:
Depending on the mode of operation, these devices emit highly concentrated non visible infrared light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions given in IEC 60825-1 and IEC 62471.

High Power Infrared LED
Short switching times
The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.

Application:
Infrared Illumination for CMOS cameras
IR Data Transmission
Optical sensors

Specification:
Current: 100mA
Wavelength: 860nm
forward voltage: 1.5v
view angle: +-60 degree
operating temperature: -40 ~ 100 degree
pin: 2 SMD PAD
