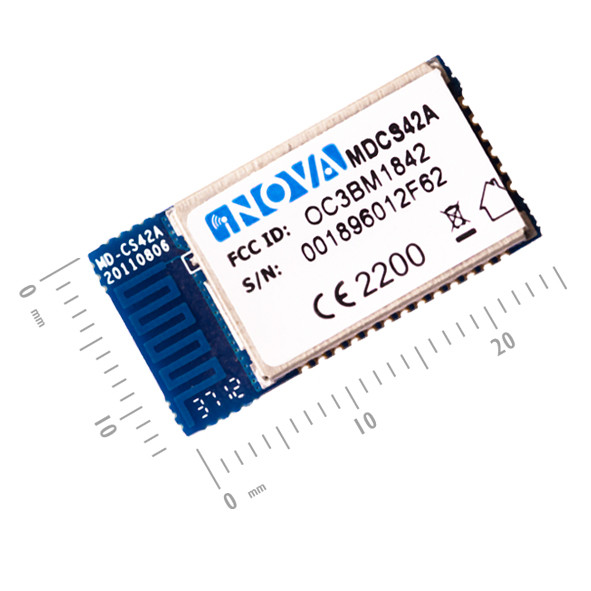

ماژول بلوتوث NVC-MDCS42A

NVC-MDCS42 is a highly integrated Bluetooth^® 2.1 +EDR module with a small form factor. It is an ideal solution for OEMs to quickly integrate Bluetooth^® wireless capacity into their designs without investing much time into Bluetooth radio technology and stack firmware development. With NovaComm’s BC:™ programming interfaces, designers can easily customize their applications to support different Bluetooth profiles and Apple iAP connectivity.  The NVC-MDCS42A combines iNova stack firmware and NovaCom’s skilled customer services ensures to reduce design uncertainty and launch your highly competitive products to market in an extremely short time.

Radio Features

• Bluetooth V2.1 +EDR
• Bluetooth Class 2 Radio
• Transmit power: +4dBm
• Receiver sensitivity: -84dBm
• Operation Range: 10 meters line-of sight.
• Integrated meander line antenna

Hardware Features

• UART and USB interfaces
• PCM digital audio interface
• 10 software programmable IO pins
• 2x AIO
• Operating voltage: 2.7V~3.6V
• Temperature: -40 °C ~ +85 °C
• Dimension: 25mm x 13.4mm x 2.2mm
