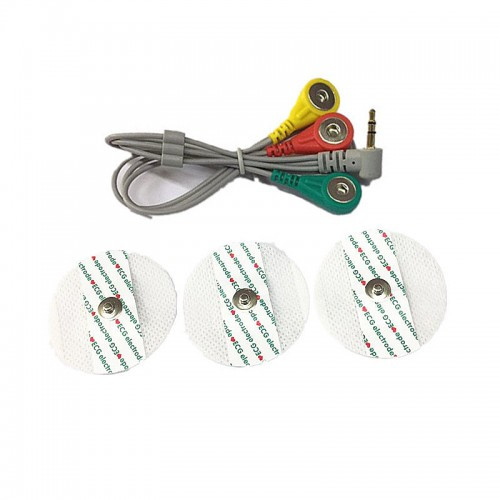

مجموعه کامل ماژول سنسور ضربان قلب AD8232

Description:

The AD8232 Single Lead Heart Rate Monitor is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading.

ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily. The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

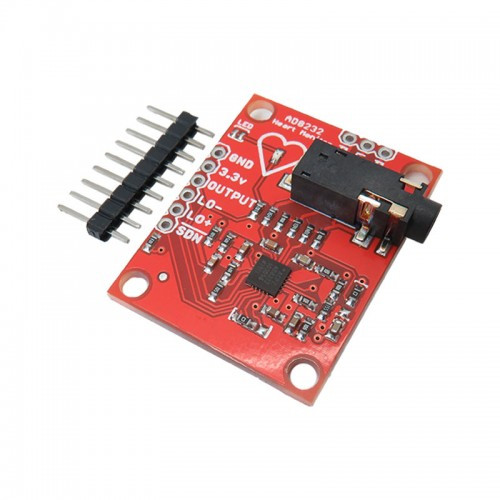

The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat.



Application:
Fitness and Sports Heart Rate Monitoring

Portable ECG

Remote Health Monitor

Game Peripheral Equipment

Bioelectricity Signal Collection



Features:
Supply voltage: 3.3 V DC

Output Type: Analog Output

Output interface: 2.54 pin or headphone jack

Product size: 36mm * 31mm * 18mm

Operating temperature: -40 degrees Celsius to + 85 degrees Celsius
