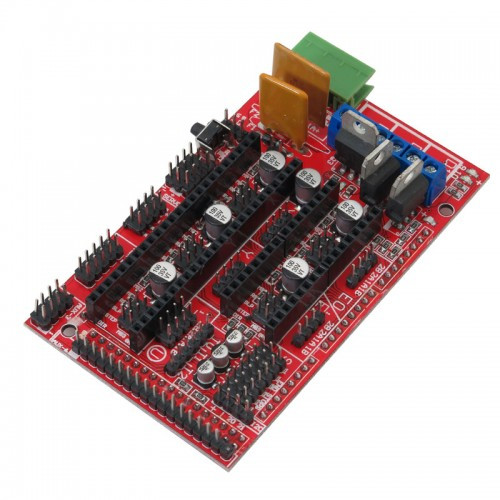

برد کنترلر پرینتر سه بعدی RAMPS ورژن 1.4

Description:

The RAMPS 1.4 Model is designed to fit the entire electronics needed for RepRappers. RAMPS interfaces an Arduino Mega with the powerful Arduino MEGA platform and has plenty of room for various expansions. The module's design includes a plug-in stepper driver and extruder control electronics on an Arduino MEGA shield for easy service, part replacement, upgrade and expansion. What's more, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

Application:

3D printer

Three-axis cncs



Features:

Interfaces with Arduino MEGA2560.

Room for additional expansion boards.

Up to 5 independent stepper motor driver outputs, 3 Axis + 2 Extruders, with dual motor driven Z-Axis.

Compatible with Pololu A4988 and DRV8825 stepper drivers and others.

6 Limit switch inputs.

3 Thermistor inputs.

3 PWM MOSFET’s outputs, 2 x 5A resettable fused (Extruder’s or Fans), 1 x 11A resettable fused (Heated Bed).

I2C and SPI outputs

LCD Screen can be connected

Additional connections available for servos, fans extenders, etc.
