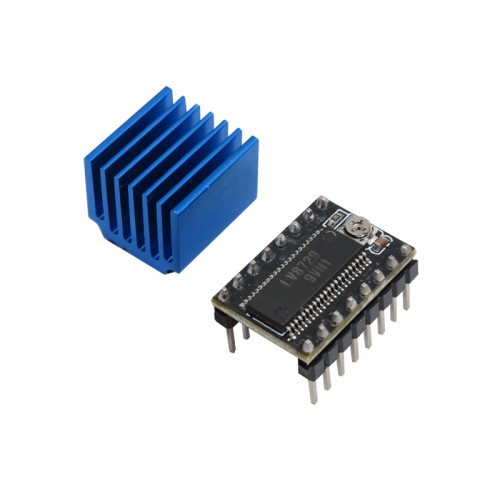

ماژول درایور استپر موتور MKS-LV8729 مناسب برای ساخت پرینتر سه بعدی

Description:

MKS LV8729 is an ultra-quiet stepper motor driver, and good for Nema stepper motor whose current is less than 1.5A, which makes motor steady, quiet, and precise. Also, it does good work with MKS ROBIN, MKS GEN, MKS SBASE, and RAMPS1.4 controller board on 3d printer, carving machine, CNC, etc. Current limits can be adjusted by measuring the VREF and the adjustable resistance (pls check wiring diagram). Connect the voltmeter + to VREF, [-] to the GND,. and read the value. LV8729 uses 0.10ohm current sense resistor.

The LV8729V is a PWM current-controlled micro step bipolar stepper motor driver. This driver can perform eight times of excitation of the second phase to the 32W 1-second phase and can drive simply by the CLK input.



Application:

3D printer

CNC machine

etc.



Features:

Input Voltage: 6-36V

Max Current: 1.5A

Micro Stepping: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128

4-layer substrate(PCB)
