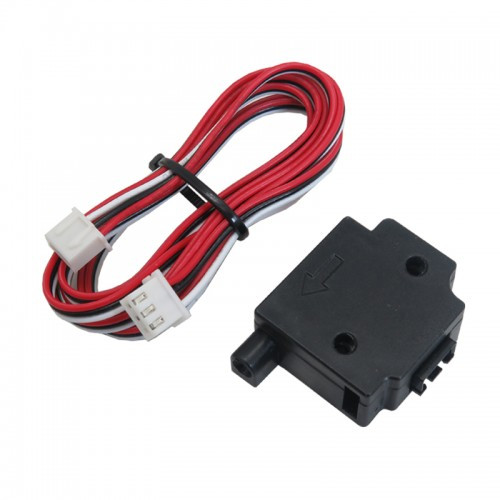

ماژول تشخیص متریال فیلامنت 1.75mm پرینتر سه بعدی

Description:

The filament detection module uses the level transition detection method. When with filament in, the detection level signal should be high, and when no filament, the filament port level signal goes low. When the system detects a determined transition from high to low level, it will regard it as the filament exhausted, then the board executes the pause command operation, and after the replacement of the filament, it will continue to print.



Application:

3D printer



Features:

Applicable filament diameter: 1.75mm

Mounting hole size: 3.5mm

Mounting hole distance: 20mm

Wire length: 1 m/

Module size: 38 * 30 * 12.7 mm

Motherboard wiring: M-sensor port

Color: Black
